TECHNICAL FEATURES

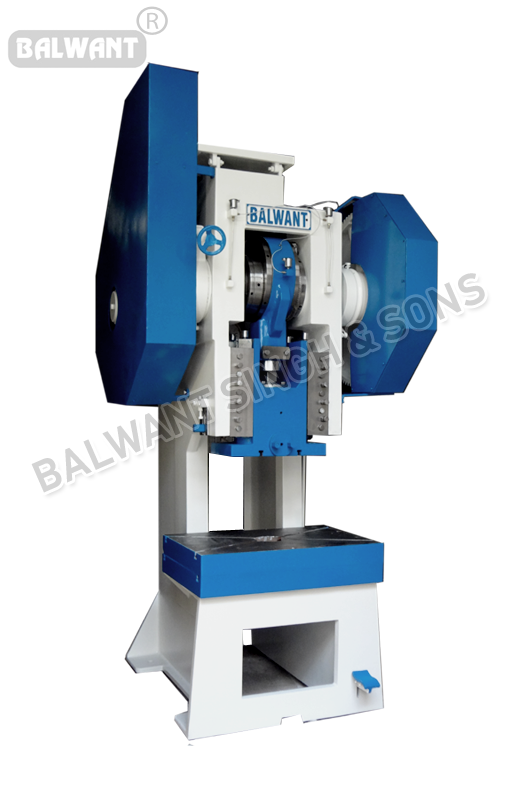

C-frame presses, also commonly
referred to as gap frame presses, are characterized by their unique frame style,
resulting in the formation of a “C” around the bolster plate.
Balwant offers C-frame presses in a variety of bed sizes and tonnages.
Tonnage Capacity – 10 to 300 Ton
Application: Used for Blanking, Punching, Pressing and Stamping.
|
Standard Accessories- |
Optional Accessories- |
|
Flywheel & Gear Guard |
Electric Motor, Starter & V-Blet |
|
Oil Cups |
Extra Base plate |
|
Motor Pulley |
|
|
Knock Out System |
|
|
Slide Adj. Spanner |
|
|
Clutch Key |
|
1.) Three access points to the operations area, allowing easier die maintenance and adjustments, along with evacuation of scrap metal and finished parts.
2.) This is conventional frame structure design of power presses and due to open from 3 sides; also known as open front press. Key advantages of C Frame are operator can work from 3 sides as well as use maximum area of Press Bed or Bolster also convenient for progressive tooling
TECHNICAL SPECIFICATION
| Capacity in Tons | 5 Ton | 10 Ton | 20 Ton | 30 Ton | 50 Ton | 75 Ton | 100 Ton | 150 Ton | 200 Ton |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| Bed Size (F.R XL.R.) | 260x425 | 318x482 | 360x540 | 415x645 | 500 X 750 | 550 X 825 | 625x965 | 750x1050 | 800x1125 |
| Bed to Ram Bottom | 251 | 245 | 280 | 330 | 360 | 400 | 540 | 550 | 555 |
| Stroke | 40 | 51 | 65 | 76 | 90 | 100 | 115 | 140 | 145 |
| Crank Shaft Dia | 76 | 80 | 90 | 100 | 118 | 130 | 150 | 175 | 200 |
| Bore in Bed | 90 | 100 | 125 | 150 | 175 | 190 | 200 | 225 | 250 |
| Gear Dia | 360 | 450 | 525 | 625 | 700 | 775 | 950 | 100 | 1050 |
| Flywheel Dia | 450 | 525 | 600 | 650 | 775 | 900 | 950 | 1050 | 1200 |
| No. Of Stroke (P.M) | 70 | 65 | 60 | 55 | 50 | 45 | 40 | 30 | 30 |
| Motor H.P. Req. | 1.5HP | 2 HP | 3 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP | 15Hp |
| Motor Puly | 100 | 115 | 125 | 150 | 175 | 200 | 200 | 200 | 200 |
| App. Weight | 500Kg | 750Kg | 1200Kg | 1700Kg | 2300Kg | 3000Kg | 5000Kg | 6200Kg | 8700Kg |
